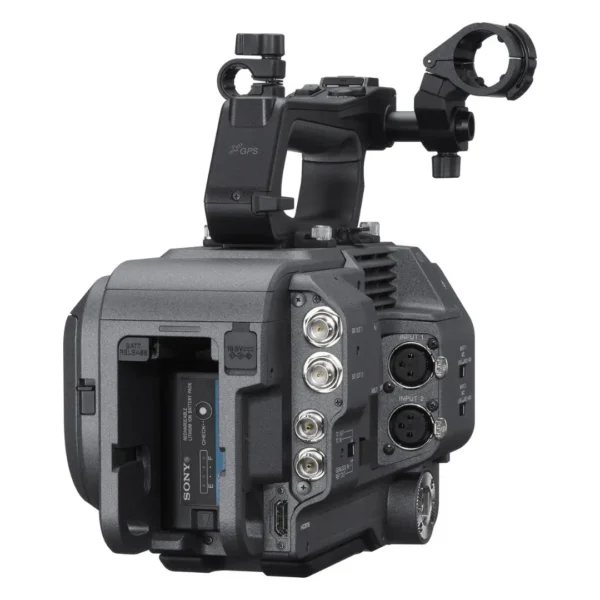

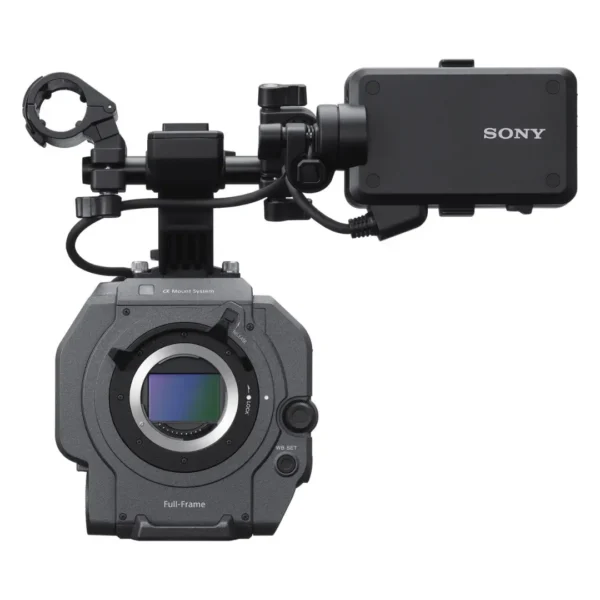

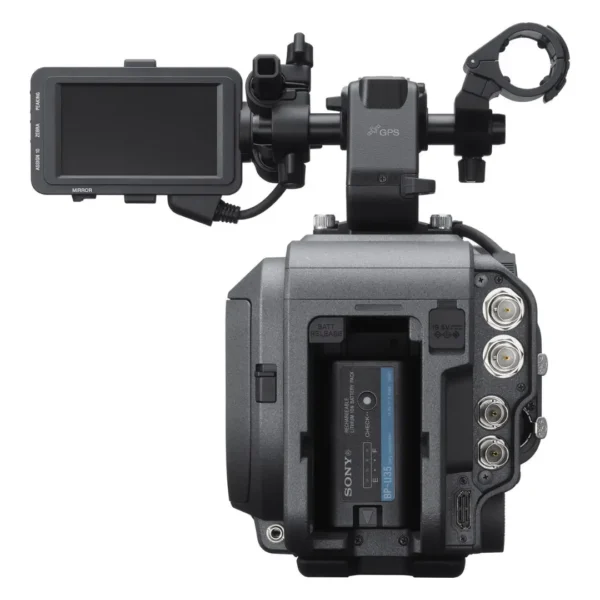

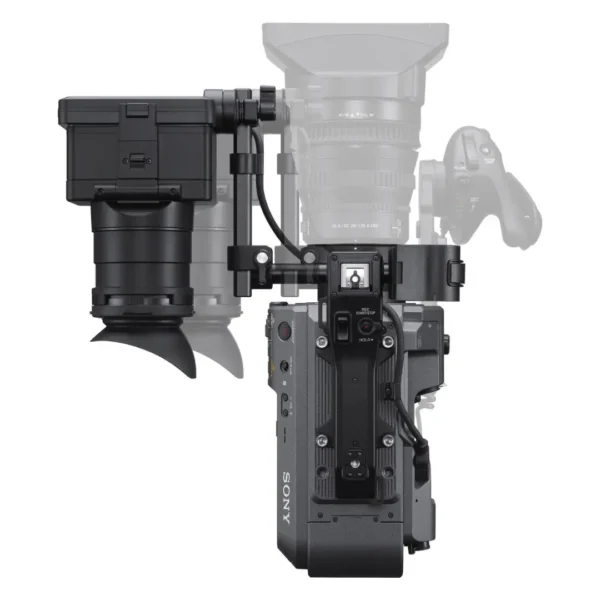

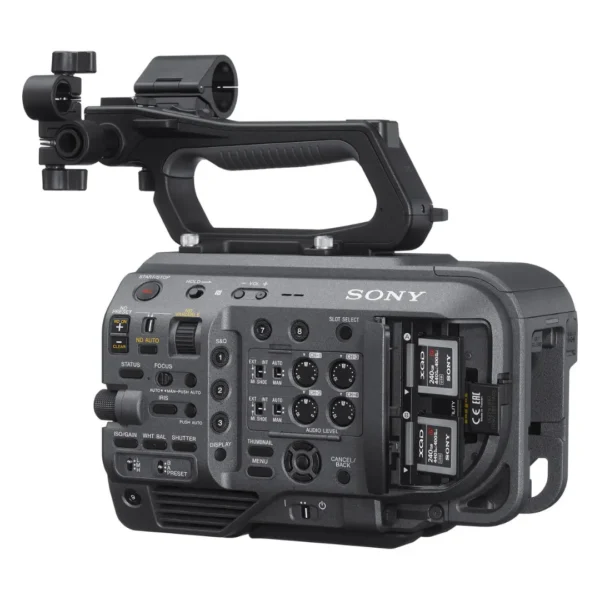

Sony PXW-FX9 XDCAM 6K Full-Frame Camera System (Body Only) – Camera Guide PK

Key Features

Sony PXW-FX9: 6K Full-Frame Exmor R CMOS Sensor
15 Stops of Dynamic Range, Dynamic HDR
DCI 4K and UHD 4K up to 60p
Quad Full HD 120p Raw with XDCA-FX9 Unit
HD Recording up to 150/180 fps
Sony E-Mount
10-Bit 4:2:2 XAVC-I up to 600 Mb/s
Auto-HD, AF, 7-Stop ND Filter, 3D LUTs
Dual Base ISO up to 102,400, HLG Mode
12G/6G/3G-SDI and HDMI Output up to 4K

Sony PXW-FX9 XDCAM 6K Camera Overview: A Full-Frame Powerhouse for Cinematic Content

Introduction to the Sony PXW-FX9 6K Camera System

The Sony PXW-FX9 XDCAM 6K Full-Frame Camera System is a professional-grade, future-proof camera designed to meet the demands of modern filmmakers, documentarians, and broadcast producers. With its oversampled 6K Exmor R CMOS sensor, this camera provides DCI 4K and UHD 4K recording capabilities, unmatched dynamic range, and top-tier autofocus and stabilization technologies—all in a rugged yet lightweight body.

6K Full-Frame Exmor R CMOS Sensor: Superior Image Quality

At the heart of the Sony FX9 camera is a back-illuminated 6K Exmor R CMOS sensor, delivering exceptional low-light performance and incredible detail. This sensor enables internal recording in DCI 4K, UHD 4K, and Full HD with superior clarity. The increased surface area and pixel readout reduce noise and improve sensitivity, giving your footage a cinematic feel even in the most challenging lighting conditions.

Cinematic Dynamic Range with 15+ Stops

Boasting over 15 stops of dynamic range, the PXW-FX9 supports dynamic HDR and Hybrid Log-Gamma (HLG) recording modes. This extended range allows content creators to preserve detail in highlights and shadows, making it an ideal choice for color grading in post-production. Whether you’re shooting high-contrast landscapes or dramatic scenes, this camera captures every nuance.

S-Cinetone and Color Science

Developed alongside Sony’s high-end VENICE cinema camera, the S-Cinetone color profile is the FX9’s default setting. It delivers natural mid-tones, vibrant skin tones, and a filmic tonal response. This means your footage looks polished straight out of the camera, reducing the time needed in post.

Dual Base ISO up to 102,400

Adaptability is crucial in real-world shooting environments, and the FX9 excels with its dual base ISO of 800 and 4000, extending up to an impressive ISO 102,400. The high base ISO ensures excellent low-light performance, especially during dusk, dawn, or interior shoots. From sun-drenched exteriors to dimly lit venues, this camera keeps your images crisp and clean.

High-Speed Recording and Frame Rate Flexibility

Capture slow-motion or quick-motion footage seamlessly with adjustable frame rates from 1 to 60 fps in 4K. For HD, the FX9 supports up to 180 fps, providing creative freedom for high-impact shots. Coupled with oversampling technology, even Full HD footage looks razor-sharp and professional.

Fast Hybrid Autofocus and Face Detection

The FX9 is equipped with a powerful Fast Hybrid Autofocus system, combining 561-point phase detection AF with contrast detection. This advanced autofocus covers 94% of the image width and 96% of its height, delivering fast, accurate tracking of moving subjects—even in shallow depth-of-field shots. Face Detection ensures reliable focus on human subjects, making it ideal for interviews and live events.

Advanced Image Stabilization

Thanks to its internal gyroscopic sensors, the FX9 provides metadata-driven image stabilization that rivals gimbal footage. This feature, used in post-production with Sony Catalyst software, lets you fine-tune stabilization levels without resolution loss, supporting more creative control over your footage.

Built-in 7-Stop Electronic Variable ND Filter

The electronic ND filter offers smooth adjustment from 1/4 to 1/128 density. Use it in auto or manual mode to maintain consistent exposure regardless of changing light conditions. Unlike traditional ND filters, it does not alter your depth of field, allowing for cinematic control under any lighting.

Media Options and Versatile Recording Formats

The FX9 supports dual XQD card slots, offering relay and simultaneous recording, including backup options like proxy recording for fast uploads. You can shoot in XAVC-I, XAVC-L, or MPEG HD formats. For max quality, record 10-bit 4:2:2 at 600 Mb/s for 60p 4K footage. Need extended recording time? Switch to lower-bitrate codecs without sacrificing clarity.

Expand Your Workflow with Firmware 4.0

Firmware version 4.0 brings powerful workflow enhancements, including:

• C3 Portal cloud integration
• 3D LUT import and management
• Automatic cloud file backups
• LUT metadata recording
• Audio meter switching between CH1/2 and CH3/4

These updates simplify post-production and elevate team collaboration in multi-cam shoots.

16-Bit RAW Output with XDCA-FX9 Unit

Pair the FX9 with the optional XDCA-FX9 extension unit to unlock 16-bit RAW output via a single BNC cable. It supports 2K and 4K recording on external recorders, adding versatility to your capture options. The XDCA unit also adds streaming, FTP transfer, and wireless audio capabilities.

HDR and SDR Monitoring Flexibility

The FX9 makes it easy to shoot in HDR while monitoring in SDR, or vice versa. The SDR gain is recorded as metadata, streamlining the editing process. This dual workflow compatibility supports rapid content delivery in diverse formats without needing full-color grading.

Multi-Camera Remote Operation and Network Integration

Whether you’re producing live events or studio broadcasts, the FX9 supports S700 protocol via Ethernet. Using the XDCA-FX9, control multiple cameras with a PoE switch and a single RCP unit. It also enables 4K output via HDMI and 12G-SDI, ensuring seamless integration with professional video switchers.

Wireless Connectivity and Streaming

Built-in 2.4GHz and 5GHz Wi-Fi, along with wired LAN and dual-link cellular support, enable live streaming, FTP uploads, and wireless content control through the Content Browser Mobile App. The FX9 is fully integrated with Sony’s C3 Portal, making it easy to back up high-res and proxy files directly to the cloud.

Proven Ergonomics and Accessory Compatibility

Building on the FS7’s success, the FX9 offers improved ergonomics for handheld shooting. The magnesium chassis is light yet durable, and its layout is dust- and water-resistant. It maintains compatibility with FS7 batteries, chargers, and lenses, allowing seamless upgrades for existing Sony users.

Touchscreen LCD and Quick Access Menu

The LCD touchscreen simplifies operation with quick access to key settings like base ISO, codec, scan mode, and audio levels. It features a VENICE-style UI, providing an intuitive control experience for professional users.

Final Verdict

The Sony PXW-FX9 is more than just a camera—it’s a professional tool built to empower filmmakers with 6K imaging power, full-frame flexibility, dynamic color science, and cutting-edge autofocus. Whether you’re producing narrative films, documentaries, or corporate videos, this camera delivers unmatched performance in its class.

If you’re seeking a versatile 4K full-frame cinema camera with high dynamic range, advanced connectivity, and pro-level expandability, the FX9 should be at the top of your gear list.

FAQs About the Sony PXW-FX9 XDCAM 6K Full-Frame Camera

1. What type of sensor does the Sony PXW-FX9 use?

The PXW-FX9 features a 6K full-frame Exmor R CMOS sensor, which is back-illuminated for enhanced low-light performance and dynamic range.

2. Can the FX9 shoot in 4K and slow motion?

Yes, it supports DCI 4K and UHD 4K recording up to 60p, and Full HD slow-motion up to 180 fps. Using the optional XDCA-FX9, it can output Quad Full HD 120p RAW.

3. Does the FX9 support HDR?

Absolutely. The FX9 supports dynamic HDR, HLG (Hybrid Log Gamma), and S-Log3 for high dynamic range workflows.

4. What kind of autofocus system is in the FX9?

It uses Fast Hybrid AF with 561 phase-detection points, facial detection, and customizable tracking sensitivity for reliable subject tracking—even in fast-moving scenes.

5. What is Dual Base ISO and how does it benefit low-light shooting?

The FX9 features dual base ISO settings (800/4000), offering exceptional image quality in both bright and low-light environments. It extends up to ISO 102,400 for extreme low-light conditions.

6. How is audio handled on the FX9?

The camera supports 4-channel audio recording with independent level controls, allowing use of both external microphones and the built-in mic simultaneously.

7. Can I use my existing Sony FS7 accessories with the FX9?

Yes, the FX9 is compatible with many FS7 accessories, including U-series batteries, chargers, and E-mount lenses.

8. Does the FX9 have built-in image stabilization?

The FX9 captures gyro metadata for advanced stabilization using Sony Catalyst Browse in post-production, offering smooth handheld footage without a gimbal.

9. What are the connectivity options for video output?

It includes 12G-SDI, 6G-SDI, 3G-SDI, and HDMI outputs—enabling flexible connections for 4K and HD workflows.

10. Can I operate the FX9 remotely?

Yes, it supports wireless control via Wi-Fi using the Content Browser Mobile app, as well as wired LAN, dual-link cellular streaming, and Sony QoS for live streaming.

11. How does the electronic ND filter work?

The 7-stop variable ND filter can be auto-adjusted or manually controlled between 1/4 to 1/128, enabling smooth exposure transitions without affecting depth of field.

12. What recording formats are available?

The FX9 supports XAVC-I (up to 600 Mb/s), XAVC-Long, and MPEG HD, recording internally in 10-bit 4:2:2 to dual XQD card slots.

13. Is the FX9 suitable for multicamera productions?

Yes, with Genlock and Timecode I/O, S700 protocol support, and the optional XDCA-FX9 unit, it integrates seamlessly into multicamera broadcast environments.

14. Can I import LUTs on the FX9?

You can import and manage up to 16 custom 3D LUTs, and the camera records LUT data as metadata—saving time in color grading during post.

15. What is the benefit of the XDCA-FX9 extension unit?

It enables 16-bit RAW output, advanced networking features, and provides a slot-in for wireless audio receivers, expanding the FX9’s capabilities significantly.
